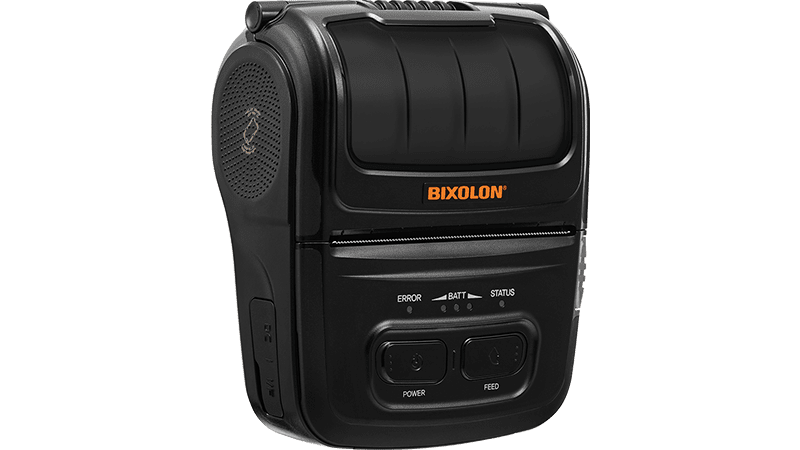

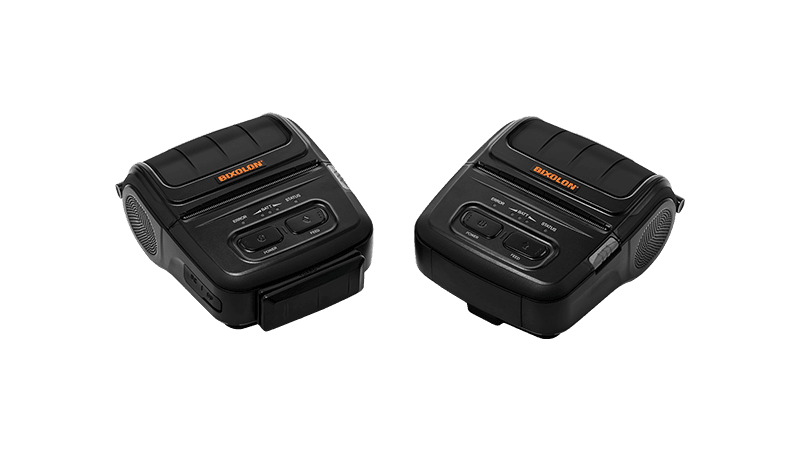

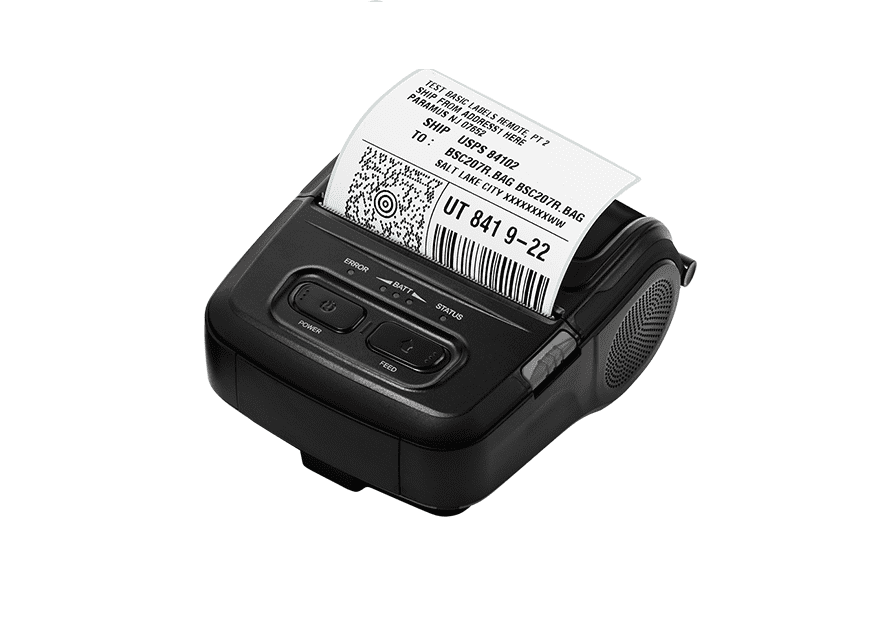

Mobile Label Printer SPP-L310

Bixolon Products in Qatar

The ergonomic design of the 3-inch (80mm) SPP-L310 offers a small form factor, but large feature set for when you need to take label printing on-the-go. Supporting marketing leading programming languages, including BPL-Z™ and BPL-C™, and offering extensive memory for the storage and processing of your many formats, fonts or graphics, the 203 dpi Direct Thermal SPP-L310 provide simple Near Field Communication (NFC) auto-pairing and print speeds of up to 5 ips. Wired or wireless connectivity choices – Serial, USB, Bluetooth (MFi certified) or WLAN and the ability to handle both liner and linerless media ensures that the SPP-L310 can be used for all of your mobile labelling needs. Backed by BIXOLON’s two-year warranty guarantee, and supported by its broad range of drivers, utilities and SDKs across various platforms, including Windows, Android and iOS, the SPP-L310 is the mobile worker’s chosen brand.

The ergonomic design of the 3-inch (80mm) SPP-L310 offers a small form factor, but large feature set for when you need to take label printing on-the-go. Supporting marketing leading programming languages, including BPL-Z™ and BPL-C™, and offering extensive memory for the storage and processing of your many formats, fonts or graphics, the 203 dpi Direct Thermal SPP-L310 provide simple Near Field Communication (NFC) auto-pairing and print speeds of up to 5 ips. Wired or wireless connectivity choices – Serial, USB, Bluetooth (MFi certified) or WLAN and the ability to handle both liner and linerless media ensures that the SPP-L310 can be used for all of your mobile labelling needs. Backed by BIXOLON’s two-year warranty guarantee, and supported by its broad range of drivers, utilities and SDKs across various platforms, including Windows, Android and iOS, the SPP-L310 is the mobile worker’s chosen brand.



• • SPECIFICATION

• • • • • • • • • •

Print Method

Direct Thermal

Print Speed

Up to 4 ips (102 mm/sec – Linerless), Up to 5 ips (127 mm/sec – Label)

PRINT RESOLUTION

203 dpi

PRINT WIDTH

Up to 72 mm

SENSOR

Black Mark, Gap, Paper Cover Open, Paper End

Media Type

Label, Linerless (Optional)

Media Width

80 mm / 58 mm (Optional)

Media Roll Size

Up to 49 mm

Media Thickness

0.07 ~ 0.15 mm

Supply Method

Easy Paper Loading

DIMENSION (W X D X H IN MM)

105.0 x 126.0 x 58.0 mm

Weight

Including battery: 385 g (0.85 Ibs.), Paper : 133 g (0.29 lbs.)

Electrical

7.3 V Li-ion, 2600 mAh,, EnergyStar Certified, Rechargeable Charging time: Up to 4.0 hrs

Memory

128 MB SDRAM, 256 MB Flash, 256 MB SDRAM, 512 MB Flash (Optional)

Interface

• • • • • • • • • •

Standard Interface

USB V2.0 HS + Serial

Optional Interface

USB V2.0 HS + Serial + Bluetooth / WLAN

WLAN¹

802.11a/b/g/n (Infrastructure, Ad-hoc, Wi-Fi Direct, SoftAP) – WEP40/104, WPA1/2 (PSK, EAP)

Bluetooth²

* Easy Bluetooth Pairing™ via NFC, V4.2 Classic / LE

• • ENVIRONMENTAL

• • • • • • • • • •

Operating Temperature

Operating: -15 ~ 50℃ (5 ~ 122℉), Storage: -30 ~ 70℃ (-22 ~ 158℉)

Operating Humidity

Operating: 10 ~ 80% RH

Sealing

IP54

Drop Rate

1.8 m (6 ft.)

Emulation

BPL-C™ (CPCL), BPL-Z™ (ZPLII), SLCS™

Driver / Utility

Bartender UL, Label Artist-II™, Linux / Mac CUPS Driver, OPOS / JPOS Driver, Utility Program, Virtual COM USB / Ethernet Driver, Windows Driver (Europlus / Seagull)

SDK / Plugin

Android / iOS / Windows SDK, Chrome SDK, Cordova Plugin, Linux SDK, Xamarin SDK

Application

Label Artist™ Mobile (Android, iOS), mPrint App (iOS)

• •Fonts/Graphics/Symbologies

• • • • • • • • • •

Fonts

10 SLCS™, 16 BPL-Z™, 23 Code Page, 7 BPL-C™, One BPL-Z™, One SLCS™, Unicode supported (UTF-8, UTF-16LE,UTF-16BE)

Graphics

Supporting user-defined fonts, graphics, formats, and logos

Barcode Symbologies

• • • • • • • • • •

1D

Codabar, Code 11, Code 128, Code 39, Code 93, EAN-13, EAN-8, GS1 DataBar (RSS-14), IMB, Industrial 2-of-5, Interleaved 2-of-5, Logmars, MSI, Plessey, Postnet, Standard 2-of-5, UPC-A, UPC-E, UPC/EAN extensions

2D

Aztec, Codablock, Code 49, Data Matrix, MaxiCode, MicroPDF417, PDF417, QR code, TLC 39

Standard Accessories

Battery Charger, Battery Pack, Belt Clip, Power Cord

Optional Accessories

Belt Strap, Cigarette Lighter Charger, Quad Battery Charger, Serial / USB Cable, Shoulder Strap, Single Battery Cradle

Supplies

B-linerlessTM : BIXOLON’s flexible and ecological linerless label consumables
