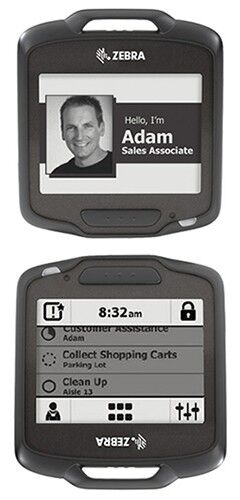

Mobile Computer SB1 Smart Badge Series

Zebra Products In Qatar

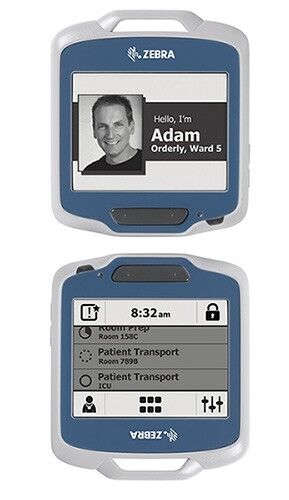

In hospitals and clinics, there are literally thousands of tasks that need to be performed every day — and the timeliness and accuracy of those tasks directly impacts the quality of care patients receive. But the cost of outfitting your entire healthcare staff with a mobile device that can streamline and improve task management has been prohibitive — until now. The SB1-HC is an affordable mobile device that provides every healthcare staff member with the features and functionality required to ensure swift action and task accuracy. With its ability to run task management applications, you can easily create a task list for each worker and track task status, while robust bar code scanning streamlines and error-proofs the execution of a wide variety of tasks. For example, technicians can scan equipment —such as holter recorders, pulse oximeters and defibrillators —to validate maintenance is about to be performed on the proper piece of equipment. Items in a supply cabinet can be scanned to automate inventory counts and replenishment, ensuring that critical supplies are always available when needed. And patient porters can scan the bar codes on patient wristbands upon pick-up and arrival to ensure that the right patient is being delivered to the right location. In addition, this tiny device has what it takes to handle life in a healthcare organization. The touch screen works even with a gloved hand. The device is designed to handle constant disinfecting with harsh chemicals. And a military standard drop specification and environmental sealing ensure dependable operation, despite drops, spills, exposure to heat and cold and more.

In hospitals and clinics, there are literally thousands of tasks that need to be performed every day — and the timeliness and accuracy of those tasks directly impacts the quality of care patients receive. But the cost of outfitting your entire healthcare staff with a mobile device that can streamline and improve task management has been prohibitive — until now. The SB1-HC is an affordable mobile device that provides every healthcare staff member with the features and functionality required to ensure swift action and task accuracy. With its ability to run task management applications, you can easily create a task list for each worker and track task status, while robust bar code scanning streamlines and error-proofs the execution of a wide variety of tasks. For example, technicians can scan equipment —such as holter recorders, pulse oximeters and defibrillators —to validate maintenance is about to be performed on the proper piece of equipment. Items in a supply cabinet can be scanned to automate inventory counts and replenishment, ensuring that critical supplies are always available when needed. And patient porters can scan the bar codes on patient wristbands upon pick-up and arrival to ensure that the right patient is being delivered to the right location. In addition, this tiny device has what it takes to handle life in a healthcare organization. The touch screen works even with a gloved hand. The device is designed to handle constant disinfecting with harsh chemicals. And a military standard drop specification and environmental sealing ensure dependable operation, despite drops, spills, exposure to heat and cold and more.



Dimensions

3.62 in. L x 3.19 in. W x 0.94 in D, 92 mm L x 81 mm W x 24 mm D

Weight

4.4 oz./124 g

COLOR

Black, Healthcare White

Display

3.0 inch E Ink Pearl display, 4-bit gray scale (16 shades), QVGA (320×240)

Touch Panel

finger operation (no stylus), Full screen resistive touch

Battery

910mAH (full charging in less than 4 hours)

Notification

Audio: beeper, Visual: multi-color LEDs

Audio

2 PTT buttons (public and private), headset jack, integrated microphone, speaker

Operating Temperature

32° F to 104° F/0° C to 40° C

Storage temperature

-40° F to 158° F/-40° C to 70° C

Humidity

5 to 95% non-condensing

Sealing

IP54

Drop Specification

Multiple 4 ft./1.22 m drop to tile over concrete per MIL STD 810G specifications

CPU

i.MX35 (532MHz)

Memory

128 MB RAM /128 MB Flash

Application

Supports thin client applications — HTML5 with RhoElements extensions

• •Interactive Sensor Technology (IST)

• • • • • • • • • •

Motion Sensor

Integrated accelerometer enables low-power badge mode and screen rotation

Barcode Scanner

1-D/2-D omni-directional bar code reader with integrated aiming and built-in illumination

• • WIRELESS LAN DATA COMMUNICATIONS

• • • • • • • • • •

Radio

Wi-Fi IEEE ® 802.11b/g/n

Voice and Audio

integrated microphone, PTT voice communications, speaker and headset for PTT communications

Software

SB1 device shell and configuration pages, Zebra Solutions integrated Rapid Deployment client for zero-touch staging and provisioning, Zebra Solutions Push-to-Talk Express (PTT ) client for PTT voice communications, Zebra Solutions RhoElements webkit application environment
