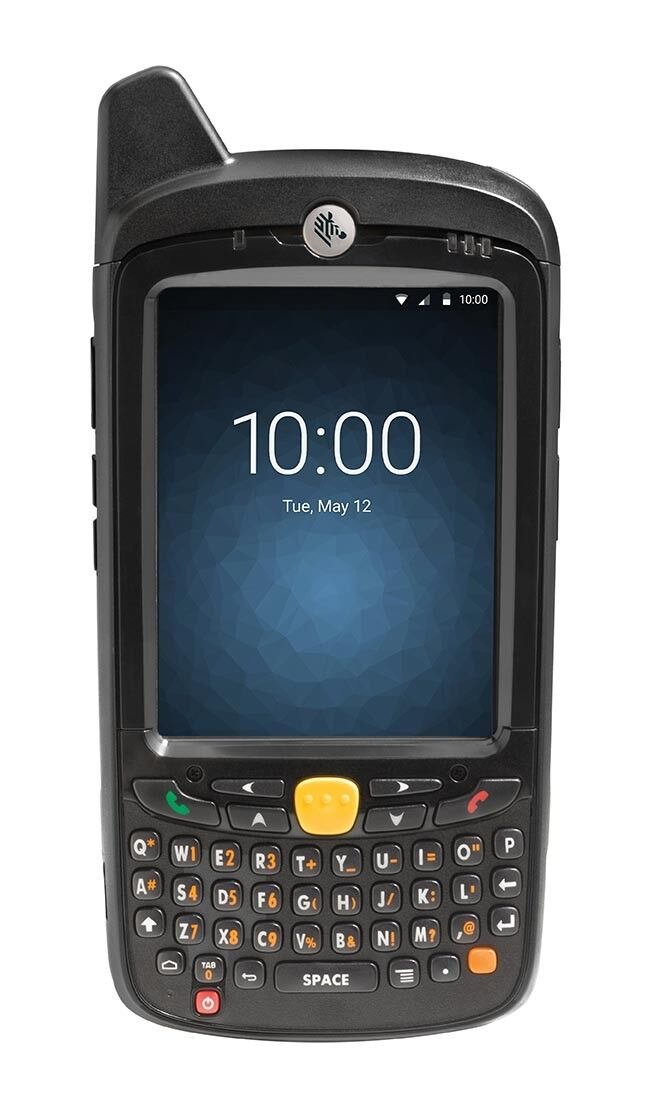

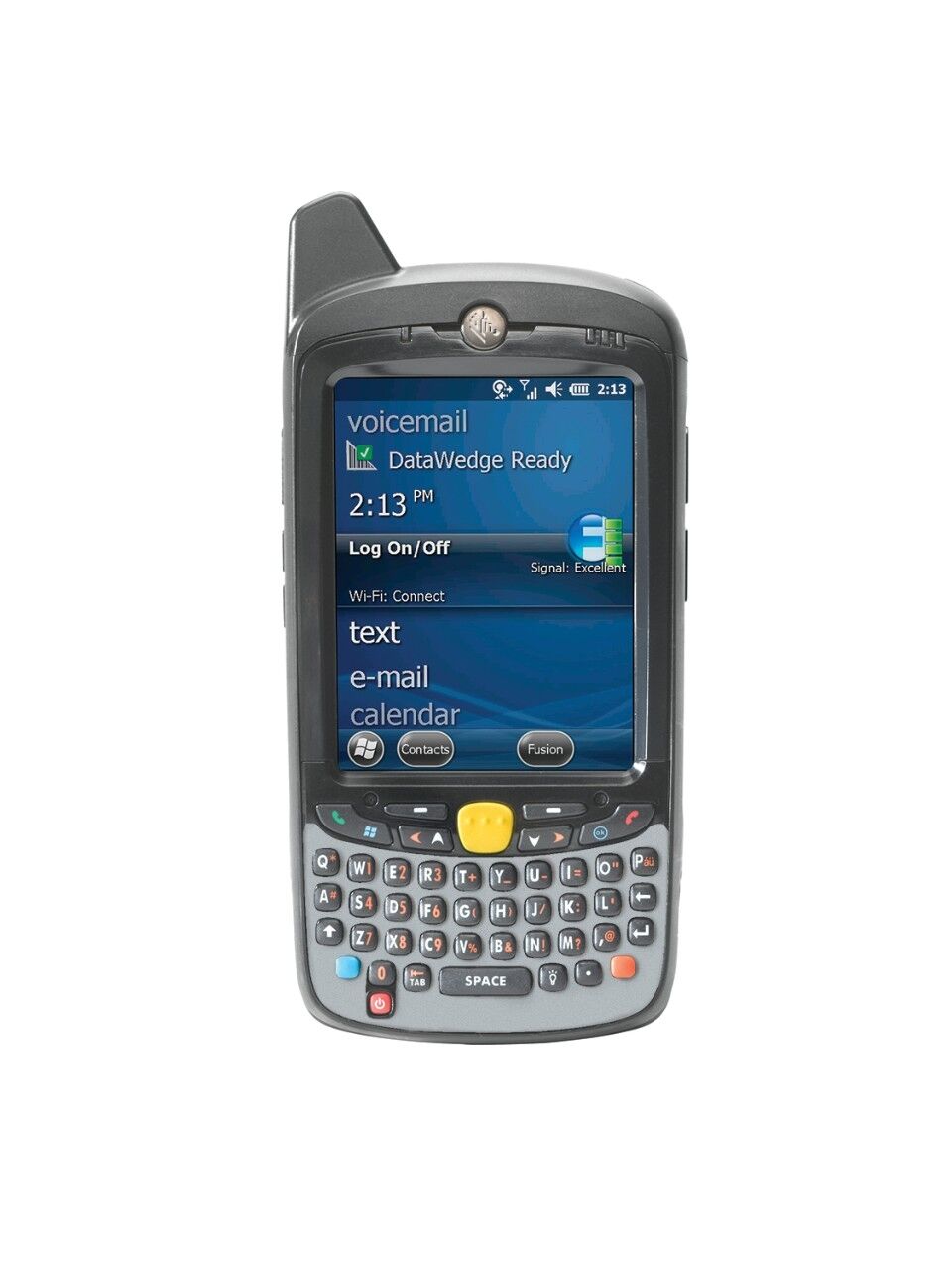

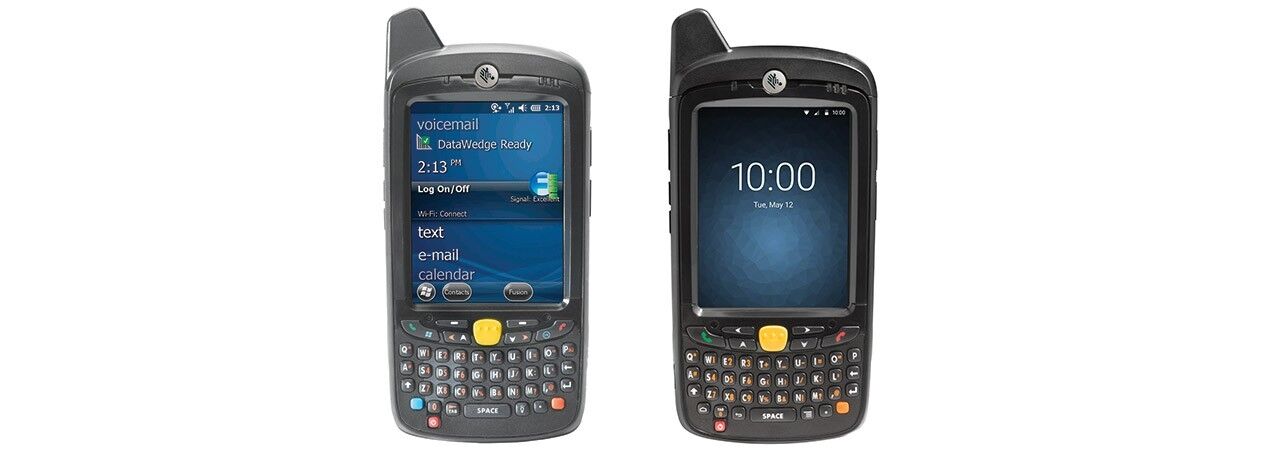

Mobile Computer MC67

Zebra Products In Qatar

GIVE YOUR FIELD WORKFORCE THE TOOLS THEY NEED TO WORK FASTER AND SMARTER THAN EVER BEFORE WITH THE MC67 FROM ZEBRA What can workers do with the MC67? Everything they need to get the job done. Choose the operating system that best supports your mobility strategy — Windows Embedded Handheld 6.5 or Android Jelly Bean (4.1) — to instantly access the wealth of information in your business systems to increase task efficiency and accuracy. Send a video clip of a piece of equipment in need of repair to get on-the-spot guidance from an in-house expert or equipment manufacturer. Snap a high-resolution picture to document condition. Scan a bar code to quickly and accurately track parts as they are used. Capture an important document. Call a customer to update the arrival time window. Check and respond to email. And if you currently use the MC65, backward compatibility with most of the MC55/MC65 accessories you already own allows you to cost-effectively upgrade to the latest mobile computing technology. So whether your mobile workers are fixing equipment, picking up or delivering shipments, taking customer orders, inspecting buildings or restaurants, issuing citations or collecting competitive information, give them all the latest tools to get more done and done right — all in one super rugged device that loves life in the field.

GIVE YOUR FIELD WORKFORCE THE TOOLS THEY NEED TO WORK FASTER AND SMARTER THAN EVER BEFORE WITH THE MC67 FROM ZEBRA What can workers do with the MC67? Everything they need to get the job done. Choose the operating system that best supports your mobility strategy — Windows Embedded Handheld 6.5 or Android Jelly Bean (4.1) — to instantly access the wealth of information in your business systems to increase task efficiency and accuracy. Send a video clip of a piece of equipment in need of repair to get on-the-spot guidance from an in-house expert or equipment manufacturer. Snap a high-resolution picture to document condition. Scan a bar code to quickly and accurately track parts as they are used. Capture an important document. Call a customer to update the arrival time window. Check and respond to email. And if you currently use the MC65, backward compatibility with most of the MC55/MC65 accessories you already own allows you to cost-effectively upgrade to the latest mobile computing technology. So whether your mobile workers are fixing equipment, picking up or delivering shipments, taking customer orders, inspecting buildings or restaurants, issuing citations or collecting competitive information, give them all the latest tools to get more done and done right — all in one super rugged device that loves life in the field.



Dimensions

162.2 mm L x 77 mm W x 33.5 mm D, 6.38 in. L x 3.03 in. W x 1.32 in. D

Weight

13.5 oz./385 g (with rechargeable 3600mAh Lithium Ion battery)

Display

3.5 in. color VGA display, 640 x 480 portrait, 650+ NITs, touch

Touchpanel

Glass analog resistive touch

Backlight

LED backlight

Power

PowerPrecision 3600 mAh Li-Ion rechargeable battery

Backup Battery

Ni-MH battery (rechargeable) 15mAh 3.6V nominal (not user-accessible or replaceable)

EXPANSION SLOT

Micro SD card slot (supports up to 32GB)

Communications

Interface: USB 2.0 high speed ( host and client)

Notification

Audible tone plus multi-color LEDs

Keypad Options

DSD, Numeric,, QWERTY

Audio

Bluetooth headset, Dual microphone support with noise cancellation, speaker, vibrate alert

CPU

Dual core 1GHz OMAP 4 processor

Operating System

Microsoft Embedded Handheld 6.5 Professional

Memory

1 GB RAM/8 GB Flash

Operating Temperature

-4° F to 122° F/-20° C to 50° C

Storage temperature

-40° F to 158° F/-40° C to 70° C

Humidity

5 to 95% non-condensing

Drop Specification

6 ft./1.8 m per MIL-STD 810G across the operating temperature range, Multiple 8 ft./2.4 m drops per MIL-STD 810G at room temperature

Tumble Specification

2,000 1.6 ft./0.5 m tumbles, meets and exceeds IEC tumble specification

Sealing

IP65 and IP67 per IEC specification

Vibration

0.04g2/Hz Random (20Hz to 2KHz ), 3 axes, 4g’s PK Sine (5Hz to 2KHz), 60 minute duration per axis

Thermal Shock

-40° F to 158° F/-40° C to 70° C rapid transition

Electrostatic Discharge (ESD)

± 15kv Air discharge, ± 8kv direct discharge, ± 8kv indirect discharge

Motion Sensor

3-axis accelerometer provides motion-sensing for dynamic screen orientation and power management

Light Sensor

Ambient light sensor auto adjusts display backlight brightness

Digital Compass

Navigational aid for users on foot

Options

2-D SE4500-DL imager, 2-D SE4500-DL imager + 8 MP Camera, 2-D SE4500-DPM/HD + 8 MP camera, 2-D SE4500-SR imager, 2-D SE4500-SR imager + 8 MP Camera

Data Types

1-D/2-D bar codes, photographs, signatures and documents, video

Voice and Audio

handset/speakerphone modes, High-quality speakerphone, wireless (Bluetooth) headset support

• • WIRELESS LAN DATA COMMUNICATIONS

• • • • • • • • • •

WAN

Frequency band: UMTS/HSDPA and HSUPA — 850, 900, 1900 and 2100 MHz; GSM/EDGE: 850, 900, 1800 and 1900 MHz; CDMA EVDO Rev A — 850 and 1900 MHz, Radio: 4G HSPA+; dual WAN 4G HSPA+ and/or CDMA EVDO Rev A (Verizon only or Sprint only) software configurable modem

WLAN¹

Push-to talk (PTT) ready, VoIP ready

Integrated GPS

Integrated standalone and Assisted-GPS (A-GPS): SUPL 1.0

Radio

Tri-mode IEEE® 802.11a/b/g/n

Security

802.1x, CCXv4 certified, EAP-TLS, FIPS 140-2 certified, LEAP, EAP-FAST ( TLS, MS-CHAPv2, EAP-GTC), PEAP (TLS, MSCHAPv2, EAP-GTC), TTLS (CHAP, MS-CHAP, MS-CHAPv2, PAP or MD5), WPA2 (Personal or Enterprise)

Data Rates

1, 2, 5.5, 6, 9, 11, 12, 18, 24, 36, 48, 54 and up to 72.2 Mbps

Voice Communication

IEEE 802.11a/b/g/n direct sequence wireless LAN, Voice-over-IP ready, Wi-Fi Multimedia™ (WMM and WMM-PS ) Zebra Voice Quality Manager ( VQM), Wi-Fi™- certified

Bluetooth¹

Bluetooth Class II, v2.1 with Enhanced Data Rate (EDR)
