Mercury EK 2100 Series
Mercury EK 2100 Series: A 21.5″ retail kiosk with touch screen, flexible setup, and modular design for ordering, information, and wayfinding.

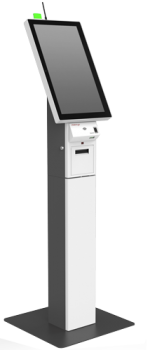

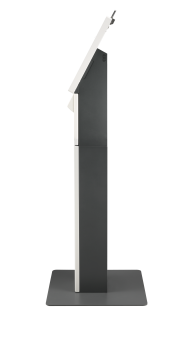

Mercury EK 2100 Series is a 21.5″ display kiosk with a stylish and functional design that will blend seamlessly in any retail environment. The Mercury EK-2100 Series can serve as an Ordering/Queue Kiosk/Information Kiosk to interact with customers and simultaneously help retailers to drive more demand and business.
Built to Fit in and Get Down to Your Business
• 15.6” or 21.5” true-flat PCAP touch screen
• Flexible configurations: floor-standing or countertop
• Modular design for easy serviceability
• A good value kiosk in entry-level category
• Popular uses: product display & advertising, ordering & payment, click & collect, ticketing & e-reservations, wayfinding & customer guidance
| • • SPECIFICATION | • • • • • • • • • • |
|---|---|
| Processor | EK-2110: Dual Cortex-A72 + Quad Cortex-A53, EK-2130: Intel Bay Trail J1900, Quad Core, up to 2.42 GHz, 2M Cache, EK-2150: Intel 7th Generation Kaby Lake U Core i3/i5 |
| System Memory | EK-2110: DDR4, 2 GB, EK-2130: DDR3L SO-DIMM slot x 1, max. 8 GB, EK-2150: DDR4 SO-DIMM slot x 1, max. 16 GB |
| Storage Device | EK-2110: 16 GB eMMC, EK-2130: SATA SSD x 1, EK-2150: SATA SSD x 1 |
| Intel VPro Support | EK-2150: Core i5: Yes (for option) |
| TPM | EK-2130 & EK2150: Yes (for option) |
| Power Supply | 12V/60W x 1 + 24V/60W x 1 |
| OS Support | EK-2110: Android 9.0, EK-2130: Win 7/POSReady 7/WE 8.1 Industry/Win 10 IoT, EK-2150: Windows 10 IoT 64 bit |
| SERIAL PORT | EK-2110: RJ50 x 2, EK-2130: 3, DB9 x 1 + RJ50 x 2, EK-2150: 3, DB9 x 1 + RJ50 x 2 |
| STANDARD USB PORT | EK-2110: USB 3.0 x 1+USB 2.0 x 5, EK-2130: USB 3.0 x 1+ USB 2.0 x 7, EK-2150: USB 3.0 x 2 + USB 2.0 x 6 |
| OTG USB | EK-2110: micro USB x 1 |
| DISPLAY PORT | 1 x HDMI |
| LAN PORT | 10/100/1000 Mb x 2 |
| Audio | Internal 3W speaker x 2 |
| • • DISPLAY & TOUCH | • • • • • • • • • • |
| LCD | 21.5" |
| RESOLUTION | 1920 x 1080 |
| TOUCH | True-flat PCAP touch with multi-touch support |
| • • PHYSICAL DIMENSION | • • • • • • • • • • |
| DIMENSION (W X D X H IN MM) | Countertop version (Landscape): 540 x 395 x 588, Countertop version (Portrait): 395 x 395 x 774, Floorstanding version (Landscape):540 x 500 x 1362, Floorstanding version (Portrait): 500 x 500 x 1548 |
| Weight | Countertop version: 22.6, Floorstanding version: 34.8 |
| • • ENVIRONMENTAL | • • • • • • • • • • |
| OPERATING CONDITION | EK-2110: 0°C – 50°C, 20%RH – 90%RH, EK-2130 & EK-2150: 0°C – 50°C, 20%RH – 90%RH (Equipped with SSD) |
| STORAGE CONDITION | -20°C – 70°C, 10%RH – 90%RH |
| Proximity Sensor | Range from 60 cm to 100 cm |
| CAMERA | 1MP wide angle camera |
| Printer | 3" thermal printer w/auto cutter, 200 mm/sec (max.) |
| Status Indicator | RGB Color LED Indicator (for portrait mode only) |
| WIFI | EK-2110: USB Dongle, EK-2130 & EK-2150: M.2 WiFi/BT module |
| Scanner | 2D barcode scanner |
| EMV Payment Device Bracket | Custom bracket support for various EMV payment devices |
| NFC | EK-2130 & EK-2150: Support ISO/IEC 14443-A&B (MIFARE), JIS x 6319-4 (Felica), ISO/IEC 15693, NFC protocols – tag read/write (ISO/IEC-18092) |
| 4G / LTE | Support selected bands & countries with full SIM slot (mini-PCIe module) by request |
| BRAND |
