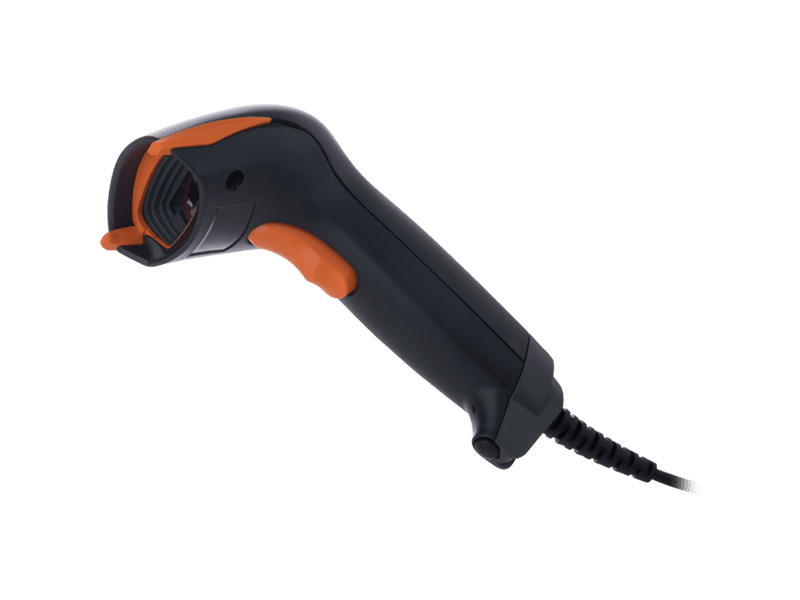

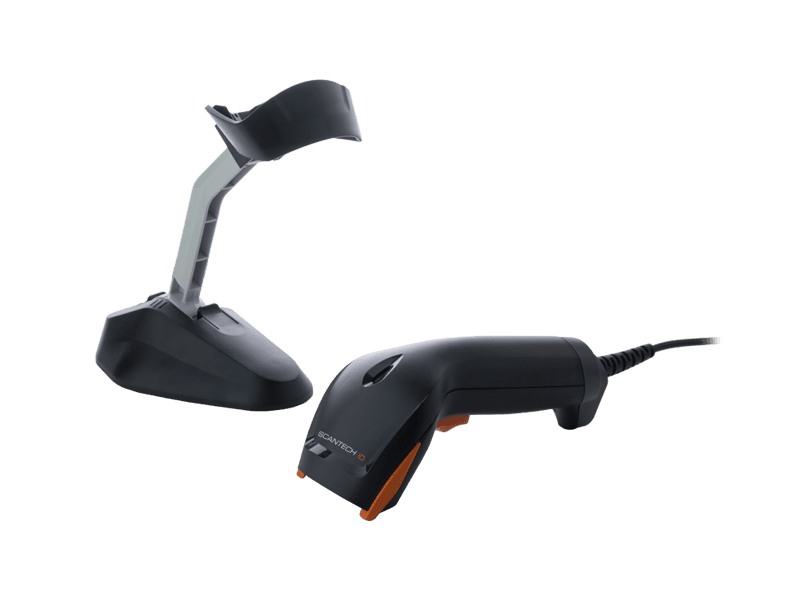

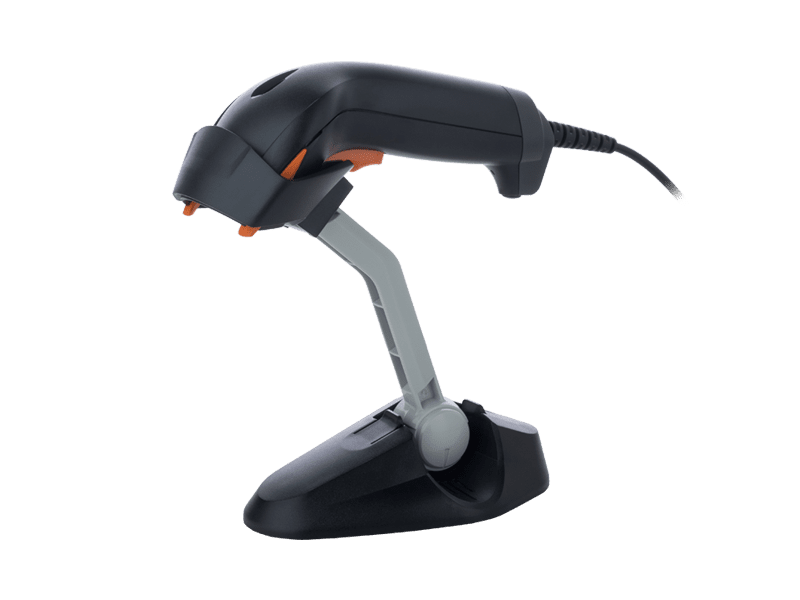

General Purpose Gun Type Scanners IG820


IG820/IG821 is a brand new general purpose gun-type Area Imager Barcode Scanner which is designed especially for retail, logistic and warehousing management market. We include friendly functions with replaceable multiple interface cable options that makes it more easily to be operated by the customers to accommodate itself to user environment.

IG820/IG821 is a brand new general purpose gun-type Area Imager Barcode Scanner which is designed especially for retail, logistic and warehousing management market. We include friendly functions with replaceable multiple interface cable options that makes it more easily to be operated by the customers to accommodate itself to user environment.



• • ENVIRONMENTAL

• • • • • • • • • •

Ambient light

100,000 Lux Max

Electrostatic Discharge (ESD)

Both contact and air at up to 16KV

• • SPECIFICATION

• • • • • • • • • •

Dimensions (WxDxH)

73.50 mm W x 173 mm D x 76.2 mm H

Light Source

White light LED

Filed of View

Horizontal – 55°, Vertical – 35°

RESOLUTION

3mil/0.076mm@PCS90% Code39, 5mil/0.127mm@PDF417

Scan Rate

60 fps (at full resolution)

Drop resistance

70.86 inches(180cm) drop on concrete surface

Print Contrast Ratio

PCS25%

Sealing

IP42 water and dust protection

Interface

RS232, USB (HID, Virtual COM)

Power

DC 5V
